Configure viewports for stories

Define viewport modes

Modes are defined in the .storybook/modes.js|ts file. If your project doesn’t have this file yet, go ahead and create it. To set the viewport in a mode, specify the screen width and/or height using the chromatic[<your-mode-name>].viewport parameter.

The following are all acceptable viewport values:

• Integer (which defaults to width)
• Width & height (integer values only)
• String that is an integer or a string integer with px suffix, e.g.: '1000px'
• Only width (snapshot will be trimmed to the content height)
• Only height (snapshot will use the default width of 1200px, and be trimmed to the content width)

export const allModes = {
  default: {
    // integer is just width
    viewport: 1280,
  },
  specificBoth: {
    // object can specify both
    viewport: {
      height: 300,
      width: 800,
    },
  },
  specificWidth: {
    // object with width
    viewport: {
      width: 800,
    },
  },
  specificHeight: {
    // object with height
    viewport: {
      height: 800,
    },
  },
  specificString: {
    // string values
    viewport: {
      height: "600",
      width: "800px",
    },
  },
} as const;

Apply modes to set viewports

Modes can be applied at different levels: project, component, or story. When a mode includes a valid viewport parameter, Chromatic will adjust the viewport size to match the defined dimensions while capturing the snapshot.

For example, given the following set of modes in .storybook/modes.ts.

export const allModes = {
  small: { name: "Small", styles: { width: "640px", height: "900px" } },
  medium: { name: "Medium", styles: { width: "768px", height: "900px" } },
  large: { name: "Large", styles: { width: "1024px", height: "900px" } },
} as const;

We can apply the modes, like so:

// Adjust this import to match your framework (e.g., nextjs, vue3-vite)
import type { Meta } from "@storybook/your-framework";

import { allModes } from "../.storybook/modes";

import { ArticleCard } from "./ArticleCard";

const meta = {
  component: ArticleCard,
  title: "ArticleCard",
  parameters: {
    chromatic: {
      //🔶 Test each story for ArticleCard in two modes
      modes: {
        mobile: allModes["small"],
        desktop: allModes["large"],
      },
    },
  },
} satisfies Meta<typeof ArticleCard>;

When Chromatic captures your story, it will create two snapshots on your build, with the browser set at each viewport. These modes will be treated separately, with independent baselines and distinct approvals.

Combining modes with the viewports feature

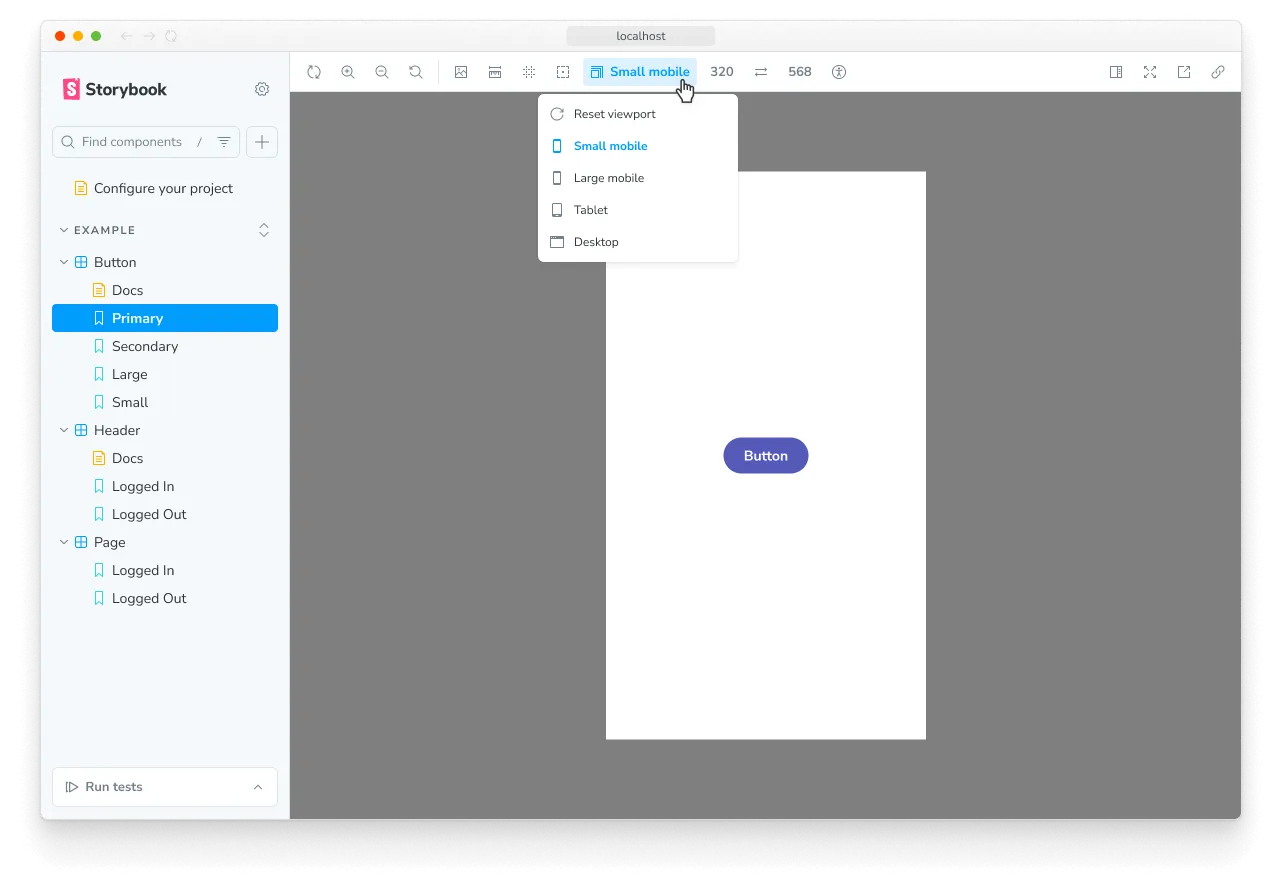

The Storybook viewport feature enables you to adjust the dimensions of the story canvas. Developers use it to verify the responsive behavior of components when building UIs. With modes, you can easily reference the different viewport sizes configured with the feature.

Reference the viewport by name

You start by configuring your desired set of viewports in .storybook/preview.js|ts. For example:

// Replace your-framework with the framework you are using (e.g., react-vite, vue3-vite)
// if you're using Storybook 9, or with the appropriate renderer otherwise.
import type { Preview } from "@storybook/your-framework";

const preview: Preview = {
  parameters: {
    viewport: {
      options: {
        xsm: { name: "XSmall", styles: { width: "320px", height: "900px" } },
        sm: { name: "Small", styles: { width: "640px", height: "900px" } },
        md: { name: "Medium", styles: { width: "768px", height: "900px" } },
        lg: { name: "Large", styles: { width: "1024px", height: "900px" } },
        xl: { name: "XL", styles: { width: "1280px", height: "900px" } },
        "2xl": { name: "2XL", styles: { width: "1536px", height: "900px" } },
      },
    },
  },
};

export default preview;

You can now refer to these viewports by their key in your mode’s definition. For example:

export const allModes = {
  xsm: {
    viewport: "xsm",
  },
  md: {
    viewport: "md",
  },
  xl: {
    viewport: "xl",
  },
  // Note, you can still specify the more
  // specific options listed in the section above
  specific: {
    viewport: {
      height: 300,
      width: 800,
    },
  },
} as const;

Using globals to define the default viewport

Within Storybook, you can configure the default viewport for stories at different levels: project, component, or story. You can do this by setting the initialGlobals configuration option at the project level and overriding it at the component or story level via the globals option. By adjusting this setting, you can control the dimensions of the story canvas when viewing it in the browser using Storybook. Chromatic will respect both options when capturing snapshots.

// Replace your-framework with the framework you are using (e.g., react-vite, vue3-vite)
// if you're using Storybook 9, or with the appropriate renderer otherwise.
import type { Preview } from "@storybook/your-framework";

const preview: Preview = {
  parameters: {
    viewport: {
      options: {
        small: {
          name: "Small",
          styles: { width: "375px", height: "375px" },
        },
      },
    },
  },
  initialGlobals: {
    viewport: {
      viewport: { value: "small" },
    }
  },
};
export default preview;

// Adjust this import to match your framework (e.g., nextjs, vue3-vite)
import type { Meta, StoryObj } from "@storybook/your-framework";

import { MyComponent } from "./MyComponent";

const meta = {
  component: MyComponent,
  title: "MyComponent",
} satisfies Meta<typeof MyComponent>;

export default meta;
type Story = StoryObj<typeof meta>;


export const DefaultViewportFromName: Story = {
  globals: {
    viewport: {
      value: "small", // This will use the 'small' viewport defined in preview.ts
    },
  },
};

That said, there are a few exceptions when Chromatic will ignore these options:

1. If your story has a chromatic.viewport parameter.
2. If your story uses a mode that specifies a viewport.
3. The globals configuration is set to a non-pixel value, e.g., 50%, 65em, calc(100vh—calc(70% + 2w)), etc.

In the example below, both stories will use the md viewport size when viewed in the browser. However, FirstStory will have one snapshot captured using the md viewport size, while SecondStory will have two snapshots captured at lg and xl viewport sizes respectively.

// Adjust this import to match your framework (e.g., nextjs, vue3-vite)
import type { Meta, StoryObj } from "@storybook/your-framework";

import { allModes } from '../.storybook/modes';

import { MyComponent } from './MyComponent';

const meta = {
  component: MyComponent,
  title: 'MyComponent',
} satisfies Meta<typeof MyComponent>;

export default meta;
type Story = StoryObj<typeof meta>;

export const FirstStory: Story = {
  globals: {
    viewport: {
      value: "md",
    },
  },
};

export const SecondStory: Story = {
  globals: {
    viewport: {
      value: "md",
    },
  },
  parameters: {
    chromatic: {
      modes: {
        lg: allModes["lg"],
        xl: allModes["xl"],
      },
    },
  },
};

Migration from viewports (legacy) to modes

The new modes API is a successor to the viewport feature and takes it a step further. With Modes, you can test your stories in different viewports and any combination of global settings you define. Additionally, you can specify specific viewport heights for tests.

We will continue to support both APIs, but we plan to deprecate the viewport feature. Behind the scenes, Chromatic automatically converts viewports to modes when capturing a snapshot. If you currently use the viewports feature, now is a good time to migrate to the new modes API.

Can I use Viewports and Modes simultaneously?

No, Chromatic will throw an error if you use both. Additionally, if you include the “viewports” key, Chromatic will convert each entry in the array into a separate mode.

For example, the following will be converted into two modes: 320px and 1200px

parameters: {
  chromatic: { viewports: [320, 1200] },
}

Frequently asked questions

// Adjust this import to match your framework (e.g., nextjs, vue3-vite)
import type { Meta } from "@storybook/your-framework";

import { MyComponent } from "./MyComponent";

const meta = {
  component: MyComponent,
  title: "MyComponent",
  parameters: {
    chromatic: {
      cropToViewport: true,
      modes: {
        small: {
          viewport: {
            height: 300,
            width: 800,
          },
        },
      },
    },
  },
} satisfies Meta<typeof MyComponent>;

// Replace your-framework with the framework you are using (e.g., react-vite, vue3-vite)
// if you're using Storybook 9, or with the appropriate renderer otherwise.
import type { Preview } from "@storybook/your-framework";

import { allModes } from "../.storybook/modes";

const preview: Preview = {
  parameters: {
    chromatic: {
      modes: {
        light: allModes["light"],
        dark: allModes["dark"],
      },
    },
  },
};

export default preview;
